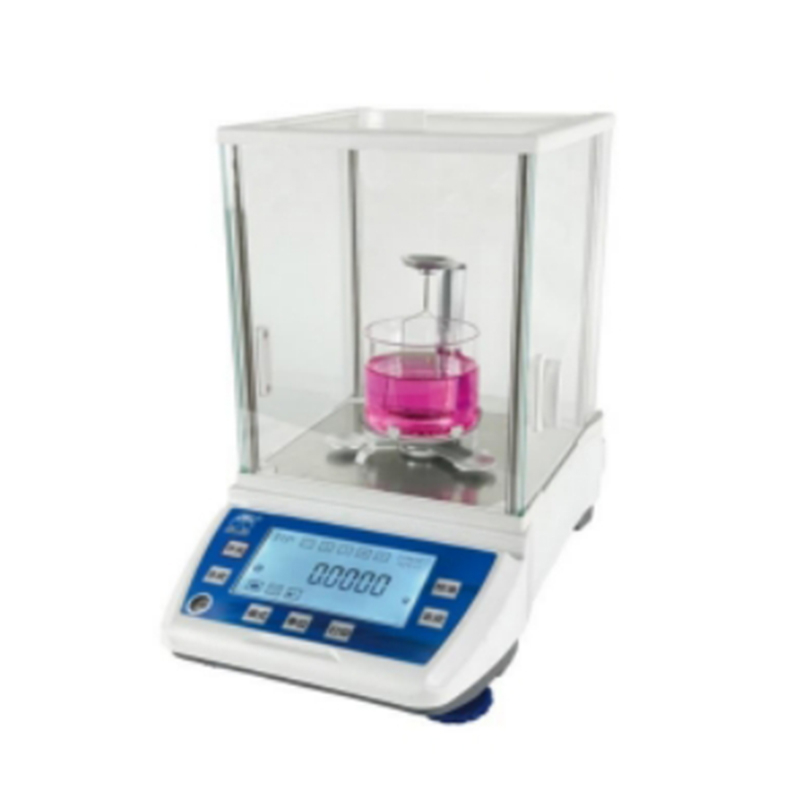

Digital Solid or Liquid Density Meter with Simple Operation, Read Data Directly

1.Large LCD display screen with black and white background, clear and readable, displaying date, time, and temperature
2.Electromagnetic force balance sensor
3.Various units such as mg/g/ct/oz/lb/gn/ozt/PCS, g/cm3, etc
4.Cast aluminum, 3 glass windproof doors, stainless steel scale pan and surrounding area
Availability:
Quantity:
Inquiry Add to Inquiry Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

The MD series analytical density balance combines high-precision electromagnetic force sensor technology with density measurement devices.

By applying Archimedes' principle, the density and volume of solid and liquid samples can be tested with simple operation, Read data directly.


Features

1.Large LCD display screen with black and white background, clear and readable, displaying date, time, and                     temperature.

2.Electromagnetic force balance sensor

3.Various units such as mg/g/ct/oz/lb/gn/ozt/PCS, g/cm3, etc

4.Cast aluminum, 3 glass windproof doors, stainless steel scale pan and surrounding area

5.Internal or external calibration

6.Equipped with a container and direct reading function, it can measure solid samples of any shape

7.Capable of measuring solid density (optional: float/particle kit)

8.Capable of measuring liquid density (optional kit)

9.Power supply: AC100-240v, DC12V1000mA


Technical Parameters:

Model

ZG-MD313

ZG-MD124

ZG-MD224

Maximum measuring range

310g

120g

220g

Accuracy

0.001 g

0.0001 g

0.0001 g

Density Accuracy

0.001g/cm3

0.0001g/cm3

0.0001g/cm3

Stability time

≤ 2 sec

Calibration method

external calibration

Test samples

solid density or liquid density

External characteristics

Aluminum base, ABS cover, stainless steel scale pan, glass windproof cover

Display mode

Large LCD with white background and black text

Dimensions

360 x 220 x 320 mm (L x W x H)

Power supply

110v - 240v, 50HZ / 60HZ

Operating temperature

15-30℃

Interface method

RS232 interface

Packaging size

475*365*475mm (L x W x H)


download ZG-MD313, ZG-MD124, ZG-MD224, ZG-MD Series Solid or Liquid Density Meter.pdf
